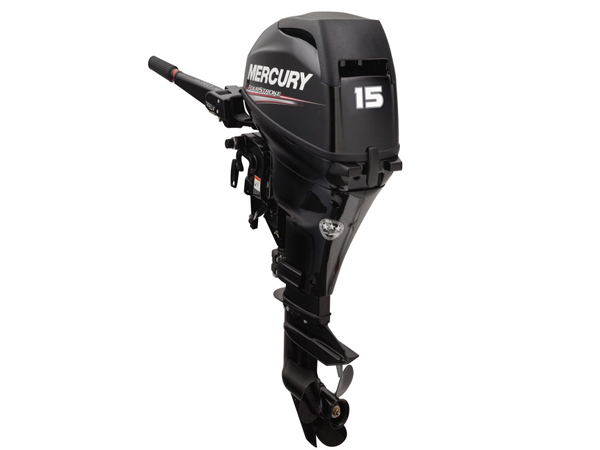

2017 Mercury 15 HP 15EH Outboard Motor
The large 21.4 cubic inch displacement powerhead of the Mercury 15hp develops plenty of low-end torque, making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatables.
Mercury’s multi-function tiller handle and vibration-absorbing wishbone mounts are just a few of the exclusive features found on Mercury 15hp models.
2017 Mercury 15 HP 15EH Outboard Motor
- Large Displacement Powerhead (351cc)
- Electric Start + 12V 138W 12A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- Tuned Intake for Quick Acceleration
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- “Wishbone” Mount for Reduced Vibration
- 6.6 Gallon Fuel Tank and Fuel Line
- Easy Maintenance Canister Oil Filter
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 15 HP 15EH Outboard Motor
|
Model |
15EH |
|
Model Year |
2017 |
|
SKU |
15EH-17 |
|
Weight |
121.0000 |
|
Manufacturer |
Mercury |
|
Country of Manufacture |
Japan |
|
Horsepower |
15hp |
|
Shaft Length |
15″ (Short) |
|
Steering |
Tiller |
|
Starting |
Electric |
|
Trim & Tilt |
Manual |
|
Fuel Delivery |
Carburetor |
|
Fuel Tank |
External |
|
Cylinder(s) |
2 |
|
Displacement |
351 cc (21.4 cubic inches) |
|
Bore and Stroke |
61 x 60 mm (2.40 x 2.36 inches) |
|
Full Throttle RPM Range |
5000-6000 |
|
Ignition System |
Digital CD Ignition w/Electronic Spark Advance |
|
Induction Scavenging |
SOHC |
|
Valves per Cylinder |
2 |
|
Fuel Type |
87 Octane (up to 10% ethanol content) |
|
Fuel Tank / Fuel Line |
6.6 Gal. Fuel Tank + Quick Connect Fuel Line |
|
Oil Type |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
|
Oil Capacity |
1 Quart (1000 ml) |
|
Lubrication |
Trochoid Pump |
|
Alternator |
12V 138W 12A (standard on electric start models) |
|
Cooling System |
Water-Cooled, Thermostatically Controlled |
|
Saltwater Rated |
YES |
|
Gear Ratio |
2.15:1 |
|
Gear Shift |
Forward-Neutral-Reverse (shift in tiller handle) |
|
Propeller |
9.2″ Diameter X 9.8″ Pitch 3-Blade Aluminum |
|
Internal Battery |
No |
2017 Mercury 15 HP 15EH Outboard Motor
What’s in the box?
- Fuel Tank (6.6 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
