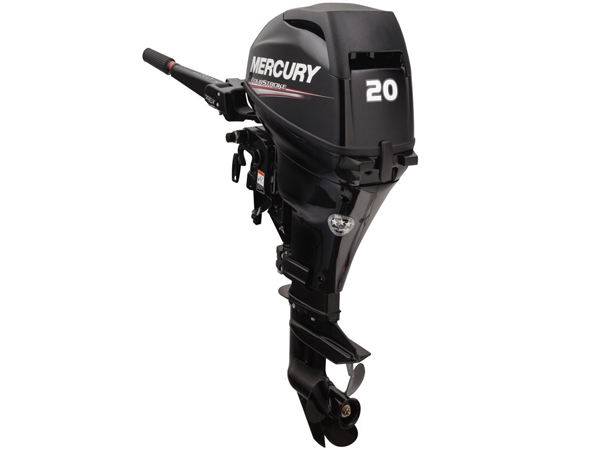

2017 Mercury 20 HP 20ELHPT Outboard Motor
The Mercury outboard motor 20ELHPT model is an electric start outboard with a 20 inch shaft with Power Tilt and multi function tiller handle. This low end torque engine has the power and prop needed to quickly plane your boat. Known for reliability, and fast acceleration, the 20 HP portable outboard by Mercury is an affordable option especially considering the long list of standard features and the Mercury 3 year warranty.
2017 Mercury 20 HP 20ELHPT Outboard Motor
- Large Displacement Powerhead (351cc)
- Electric Start + 12V 138W 12A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- Tuned Intake for Quick Acceleration
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Heavy Duty Transom Mounting Bracket
- Power Operated Tilt (Range: -6° to 75°)
- Quiet Through-Propeller-Hub Exhaust
- “Wishbone” Mount for Reduced Vibration
- 6.6 Gallon Fuel Tank and Fuel Line
- Easy Maintenance Canister Oil Filter
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 20 HP 20ELHPT Outboard Motor
|
Model |
20ELHPT |
|
Model Year |
2017 |
|
SKU |
20ELHPT-17 |
|
Weight |
130.0000 |
|
Manufacturer |
Mercury |
|
Country of Manufacture |
Japan |
|
Horsepower |
20hp |
|
Shaft Length |
20″ (Long) |
|
Steering |
Tiller |
|
Starting |
Electric |
|
Trim & Tilt |
Power Tilt |
|
Fuel Delivery |
Carburetor |
|
Fuel Tank |
External |
|
Cylinder(s) |
2 |
|
Displacement |
351 cc (21.4 cubic inches) |
|
Bore and Stroke |
61 x 60 mm (2.40 x 2.36 inches) |
|
Full Throttle RPM Range |
5400-6100 |
|
Ignition System |
Digital CD Ignition w/Electronic Spark Advance |
|
Induction Scavenging |
SOHC |
|
Valves per Cylinder |
2 |
|
Fuel Type |
87 Octane (up to 10% ethanol content) |
|
Fuel Tank / Fuel Line |
6.6 Gal. Fuel Tank + Quick Connect Fuel Line |
|
Oil Type |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
|
Oil Capacity |
1 Quart (1000 ml) |
|
Lubrication |
Trochoid Pump |
|
Alternator |
12V 138W 12A (standard on electric start models) |
|
Cooling System |
Water-Cooled, Thermostatically Controlled |
|
Saltwater Rated |
YES |
|
Gear Ratio |
2.15:1 |
|
Gear Shift |
Forward-Neutral-Reverse (shift in tiller handle) |
|
Propeller |
9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum |
|
Internal Battery |
No |
2017 Mercury 20 HP 20ELHPT Outboard Motor
What’s in the box?
- Fuel Tank (6.6 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
