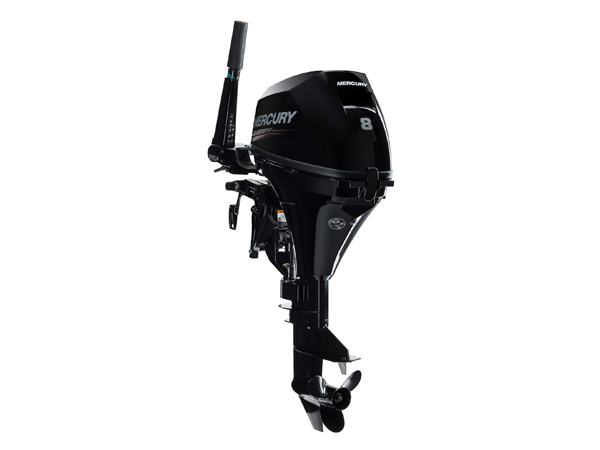

2017 Mercury 8 HP 8EH Outboard Motor
Mercury 8hp outboard motors are compact and lightweight. Ideal for jon boats, skiffs, and inflatable boats The 8 HP Mercury outboard is a two cylinder four-stroke marine engine that offers smooth, quiet, fuel efficient power. The multi-function tiller handle provides one-hand operation of throttle and steering. Mercury’s 8 HP Outboard engine comes with the patented auto-ratchet system which allows the user to easily adjust tilt and trim angle. The Mercury Model: 8EH comes equipped with a 15 inch,shaft, electric start motor and Mercury’s 3 year factory warranty
2017 Mercury 8 HP 8EH Outboard Motor
- Compact and Lightweight
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 8 HP 8EH Outboard Motor
|
Model |
8EH |
|
Model Year |
2017 |
|
SKU |
8EH-17 |
|
Weight |
91.0000 |
|
Manufacturer |
Mercury |
|
Country of Manufacture |
Japan |
|
Horsepower |
8hp |
|
Shaft Length |
15″ (Short) |
|
Steering |
Tiller |
|
Starting |
Electric |
|
Trim & Tilt |
Manual |
|
Fuel Delivery |
Carburetor |
|
Fuel Tank |
External |
|
Cylinder(s) |
2 |
|
Displacement |
208 cc (12.8 cubic inches) |
|
Bore and Stroke |
55 x 44 mm (2.16 x 1.73 inches) |
|
Full Throttle RPM Range |
5000-6000 |
|
Ignition System |
Digital CD Ignition w/Electronic Spark Advance |
|
Induction Scavenging |
SOHC |
|
Valves per Cylinder |
2 |
|
Fuel Type |
87 Octane (up to 10% ethanol content) |
|
Fuel Tank / Fuel Line |
3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
|
Oil Type |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
|
Oil Capacity |
27 fl. Oz. (800 ml) |
|
Lubrication |
Trochoid Pump |
|
Alternator |
12V 76W 6A (standard on electric start models) |
|
Cooling System |
Water-Cooled, Thermostatically Controlled |
|
Saltwater Rated |
YES |
|
Gear Ratio |
2.08:1 |
|
Gear Shift |
Forward-Neutral-Reverse (shift in tiller handle) |
|
Propeller |
8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
|
Internal Battery |
No |
2017 Mercury 8 HP 8EH Outboard Motor
What’s in the box?
- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
