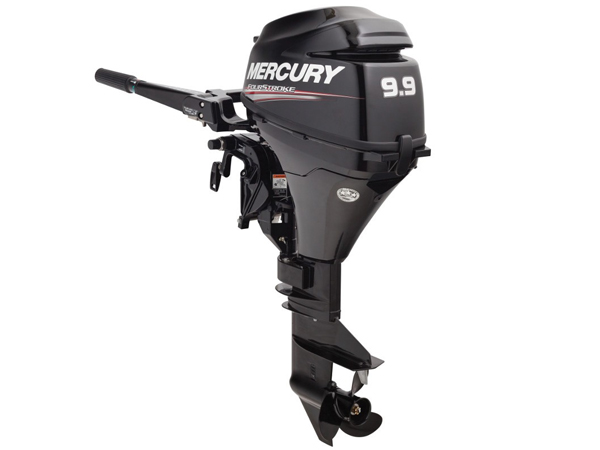

2017 Mercury 9.9 HP 9.9MXLH Outboard Motor
The Mercury 9.9 outboard engine is the right choice for sailboat and kicker applications. The 9.9 HP Mercury Outboard Motor model: 9.9MXLH is an affordable outboard, equipped with an extra long 25 inch shaft and manual start, Mercury’s 3 year factory warranty, and auto ratchet trim and multi function tiller control.
2017 Mercury 9.9 HP 9.9MXLH Outboard Motor
- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 9.9 HP 9.9MXLH Outboard Motor
| Model | 9.9MXLH |
| Model Year | 2017 |
| SKU | 9.9MXLH-17 |
| Weight | 89.0000 |
| Manufacturer | Mercury |
| Country of Manufacture | Japan |
| Horsepower | 9.9hp |
| Shaft Length | 25″ (Extra Long) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 208 cc (12.8 cubic inches) |
| Bore and Stroke | 55 x 44 mm (2.16 x 1.73 inches) |
| Full Throttle RPM Range | 5000-6000 |
| Ignition System | Digital CD Ignition w/Electronic Spark Advance |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | 87 Octane (up to 10% ethanol content) |
| Fuel Tank / Fuel Line | 3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| Oil Capacity | 27 fl. Oz. (800 ml) |
| Lubrication | Trochoid Pump |
| Alternator | Optional 12V 76W 6A (installation required) |
| Cooling System | Water-cooled with thermostat |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (shift in tiller handle) |
| Propeller | 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 Mercury 9.9 HP 9.9MXLH Outboard Motor
What’s in the box?
- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
