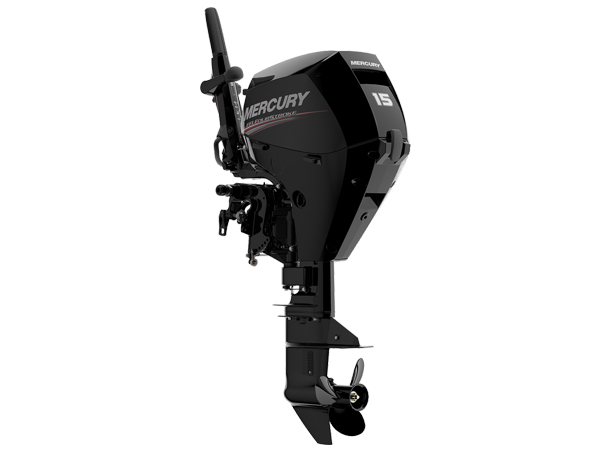

2019 Mercury 15 HP EFI 15ELH Outboard Motor
State of the art design of the 2019 15 HP Mercury EFI outboard motor powerhead creates the low-end torque needed for power and fast planing making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatable boats. This ultra-lightweight? motor is the first ever portable outboard with an ambidextrous tiller. Mercury Outboard Model: 15ELH is a 114-lb. 15 HP Electronic Fuel Injected outboard motor,? electric start with a? 20 inch? long shaft. Mercury outboard engines surpass industry standards and deliver power and fuel economy.
2019 Mercury 15 HP EFI 15ELH Outboard Motor
|
MODEL |
1A15311BK |
|
MODEL YEAR |
2019 |
|
SKU |
15ELH-19EFI |
|
WEIGHT |
114.0 lb |
|
MANUFACTURER |
Mercury |
|
COUNTRY OF MANUFACTURE |
Japan |
|
HORSEPOWER |
15hp |
|
SHAFT LENGTH |
20″ (Long) |
|
STEERING |
Tiller |
|
STARTING |
Electric |
|
TRIM & TILT |
Manual |
|
FUEL DELIVERY |
EFI |
|
FUEL TANK |
External |
|
CYLINDER(S) |
2 |
|
DISPLACEMENT |
333 cc (20.3 cubic inches) |
|
BORE AND STROKE |
61 mm x 57 mm (2.402 in. x 2.244 in.) |
|
FULL THROTTLE RPM RANGE |
5000-6000 |
|
IGNITION SYSTEM |
Digital CD Ignition w/Electronic Spark Advance |
|
INDUCTION SCAVENGING |
SOHC |
|
VALVES PER CYLINDER |
2 |
|
FUEL TYPE |
87 Octane (up to 10% ethanol content) |
|
FUEL TANK / FUEL LINE |
6.6 Gal. Fuel Tank + Quick Connect Fuel Line |
|
OIL TYPE |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
|
OIL CAPACITY |
1 Quart (1000 ml) |
|
LUBRICATION |
Trochoid Pump |
|
ALTERNATOR |
12V 138W 12A (standard on electric start models) |
|
COOLING SYSTEM |
Water-Cooled, Thermostatically Controlled |
|
SALTWATER RATED |
Yes |
|
GEAR RATIO |
2.15:1 |
|
GEAR SHIFT |
Forward-Neutral-Reverse (shift in tiller handle) |
|
PROPELLER |
9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum |
2019 Mercury 15 HP EFI 15ELH Outboard Motor
- All New Tiller Handle
- Large Displacement Powerhead (351cc)
- Electric Start + 12V 138W 12A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- Tuned Intake for Quick Acceleration
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- “Wishbone” Mount for Reduced Vibration
- 6.6 Gallon Fuel Tank and Fuel Line
- Easy Maintenance Canister Oil Filter
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 5-Year Warranty
2019 Mercury 15 HP EFI 15ELH Outboard Motor
In The Box
- Fuel Tank (6.6 gallon)
- Quick Connect Fuel Line
- Mercury 5-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
