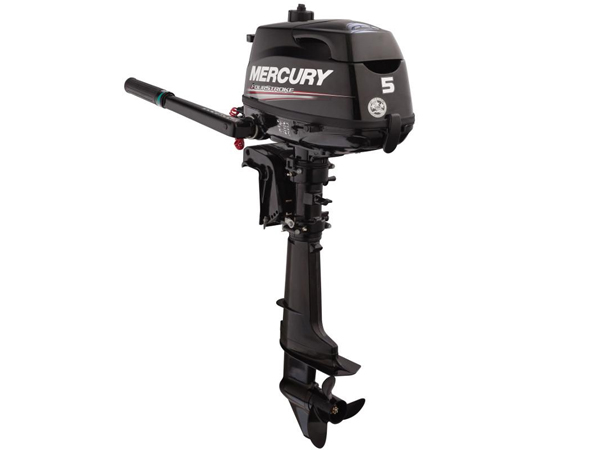

2019 Mercury 5 HP 5MH Outboard Motor
The 2019 Mercury 5 HP Outboard motor is perfect for powering small skiffs, jon boats and inflatable boats. The 55 lb. 5 HP outboard is also perfect for auxiliary power for your sailboat. Mercury Outboard motors are known for reliable, efficient power at an affordable price. A larger carburetor and propeller provide for the extra power you crave on the water. The Mercury 5 HP outboard model # 5MH is equipped with the 15 inch short shaft, an integrated gas tank, manual rope start, and forward, neutral and reverse shift. The Mercury Factory warranty begins on date of purchase.
2019 Mercury 5 HP 5MH Outboard Motor
|
MODEL |
5MH |
|
MODEL YEAR |
2019 |
|
SKU |
5MH-19 |
|
WEIGHT |
55.0 lb |
|
MANUFACTURER |
Mercury |
|
COUNTRY OF MANUFACTURE |
Japan |
|
HORSEPOWER |
5hp |
|
SHAFT LENGTH |
15″ (Short) |
|
STEERING |
Tiller |
|
STARTING |
Manual |
|
TRIM & TILT |
Manual |
|
FUEL DELIVERY |
Carburetor |
|
FUEL TANK |
Internal |
|
CYLINDER(S) |
1 |
|
DISPLACEMENT |
7.5/123 |
|
BORE AND STROKE |
2.32 x 1.77 |
|
FULL THROTTLE RPM RANGE |
4500-5500 |
|
IGNITION SYSTEM |
CDI w/electric spark advance |
|
INDUCTION SCAVENGING |
OHV |
|
VALVES PER CYLINDER |
2 |
|
FUEL TYPE |
87 Octane (up to 10% ethanol content) |
|
FUEL TANK / FUEL LINE |
0.3 US Gallon (1.15 liter) |
|
OIL TYPE |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
|
OIL CAPACITY |
15 fl. Oz. (450 ml) |
|
LUBRICATION |
Pressurized wet sump |
|
ALTERNATOR |
Optional 12V 50W 4A (installation required) |
|
COOLING SYSTEM |
Water-Cooled, Thermostatically Controlled |
|
SALTWATER RATED |
Yes |
|
GEAR RATIO |
2.15 |
|
GEAR SHIFT |
Forward-Neutral-Reverse (forward mounted shift lever) |
|
PROPELLER |
7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
2019 Mercury 5 HP 5MH Outboard Motor
- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- 1.15 Liter (.30 Gallon) Integral Fuel Tank
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2019 Mercury 5 HP 5MH Outboard Motor
In The Box
- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Tool Kit
