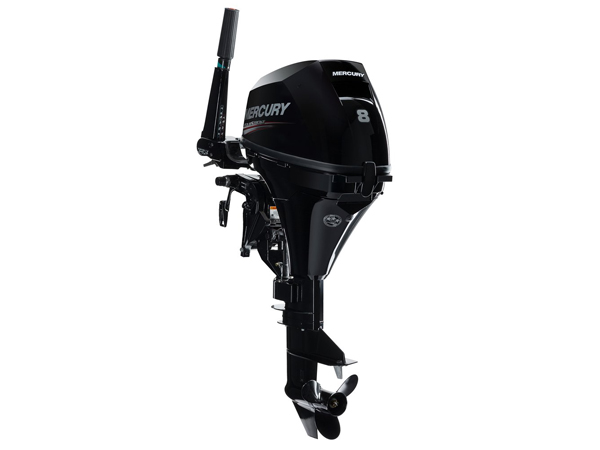

2019 Mercury 8 HP 8ELH Outboard Motor
The 93 lb. Mercury 8hp 8ELH is ideal for long shaft jon boats, skiffs, and small pontoons as well as sailboat and trolling/kicker applications. This lightweight yet powerful twin-cylinder four-stroke offers smooth, quiet, fuel efficient operation.
The multi-function tiller handle provides one-hand operation of F-N-R gear shifting, throttle and throttle tension, steering, and stopping. Mercury’s patented auto-ratchet system allows the user to easily adjust tilt and trim angle. This model comes equipped with the Mercury 3-year warranty.
2019 Mercury 8 HP 8ELH Outboard Motor
|
MODEL |
8ELH |
|
MODEL YEAR |
2019 |
|
SKU |
8ELH-19 |
|
WEIGHT |
93.0 lb |
|
MANUFACTURER |
Mercury |
|
COUNTRY OF MANUFACTURE |
Japan |
|
HORSEPOWER |
8hp |
|
SHAFT LENGTH |
20″ (Long) |
|
STEERING |
Tiller |
|
STARTING |
Electric |
|
TRIM & TILT |
Manual |
|
FUEL DELIVERY |
Carburetor |
|
FUEL TANK |
External |
|
CYLINDER(S) |
2 |
|
DISPLACEMENT |
208 cc (12.8 cubic inches) |
|
BORE AND STROKE |
55 x 44 mm (2.16 x 1.73 inches) |
|
FULL THROTTLE RPM RANGE |
5000-6000 |
|
IGNITION SYSTEM |
Digital CD Ignition w/Electronic Spark Advance |
|
INDUCTION SCAVENGING |
SOHC |
|
VALVES PER CYLINDER |
2 |
|
FUEL TYPE |
87 Octane (up to 10% ethanol content) |
|
FUEL TANK / FUEL LINE |
3.2 Gal. Fuel Tank Quick Connect Fuel Line |
|
OIL TYPE |
SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
|
OIL CAPACITY |
27 fl. Oz. (800 ml) |
|
LUBRICATION |
Trochoid Pump |
|
ALTERNATOR |
12V 76W 6A (standard on electric start models) |
|
COOLING SYSTEM |
Water-Cooled, Thermostatically Controlled |
|
SALTWATER RATED |
Yes |
|
GEAR RATIO |
2.08:1 |
|
GEAR SHIFT |
Forward-Neutral-Reverse (shift in tiller handle) |
|
PROPELLER |
8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
2019 Mercury 8 HP 8ELH Outboard Motor
- Compact and Lightweight
- Electric Start 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2019 Mercury 8 HP 8ELH Outboard Motor
In The Box
- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
