Horsepower: 5
Shaft Length: 20″ (
15″ short shaft available
)

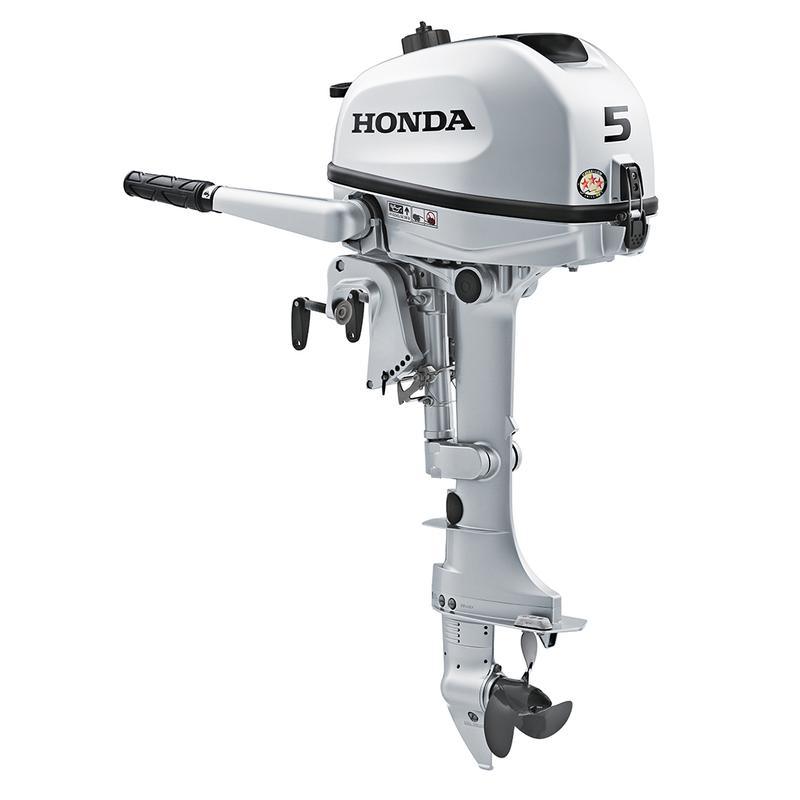

Quiet, dependable, lightweight. Which is exactly what you want in a portable outboard. The BF5D is incredibly lightweight and compact. It’s easy to transport and ideal for small tenders, canoes, and jon boats.
And with features designed to make your boat ride smooth, quiet, and Honda dependable, you’ll be ready to enjoy a day on the water for years to come.
5 Year Factory Warranty – with No Strings Attached
Yes, you read that right. All new Honda Marine outboard motors purchased for recreational use from outboarddirect.com and will be warranted against defects in material or workmanship for five (5) years from date of purchase. No catches. No strings. It’s that simple.
Additional information
| Shaft Length | 20″ (Long) |
|---|---|
| Horsepower | 5 HP |
| Starter Type | Manual |
| Tilt & Trim | Manual |
Specifications
|
Model
|
BF5DHLHNA |
|---|---|
|
Model Year
|
2021 |
|
SKU
|
BF5DHLHNA-21 |
|
Weight
|
60.6 lb |
|
Manufacturer
|
Honda |
|
Country Of Manufacture
|
China |
|
Horsepower
|
5hp |
|
Shaft Length
|
20″ (Long) |
|
Steering
|
Tiller |
|
Starting
|
Manual |
|
Trim & Tilt
|
Manual |
|
Type
|
4-Stroke OHV, 1 Cylinder/2 Valves |
|
Displacement
|
127 cc (7.8 cubic inches) |
|
Bore & Stroke
|
60 mm x 45 mm (2.4 x 1.8 inches) |
|
Full Throttle RPM Range
|
4,500-5,500 RPM |
|
Rated Power
|
5 HP @ 5,000 RPM |
|
Cooling System
|
Water Cooled |
|
Fuel Delivery
|
1 Carburetor |
|
Internal Fuel Tank Capacity
|
1.5L (.39 gal.) |
|
Ignition System
|
Digital CDI |
|
Starting System
|
Recoil |
|
Exhaust
|
Under Water, Above Propeller |
|
Lubrication
|
Wet Sump |
|
Trim Range
|
5-Stage 5°-9°-13°-17°-21° |
|
Tilt Range
|
70° |
|
Gear Ratio
|
2.08:1 |
|
Gear Shift
|
F-N-R |
|
Alternator
|
3-Amp; Opt. 6-Amp |
|
Propeller
|
3-Blade Aluminum |
|
Diameter x Pitch
|
7 7/8 x 7 1/2 Inches |
|
Oil Pressure Alert
|
Standard |
|
Low Oil Pressure
|
RPM Reduction Standard |
|
Rev-Limiter
|
Standard |
|
External Fuel Tank Connector
|
Standard |
|
Decompression Mechanism
|
Standard |
|
One-Touch Stop Button
|
Standard |
|
Overall Width
|
347 mm / 13.66 in. |
|
Transom Height
|
L Type 561 mm / 20 in. |
