2022

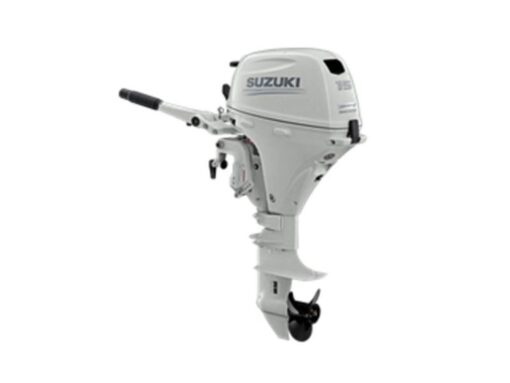

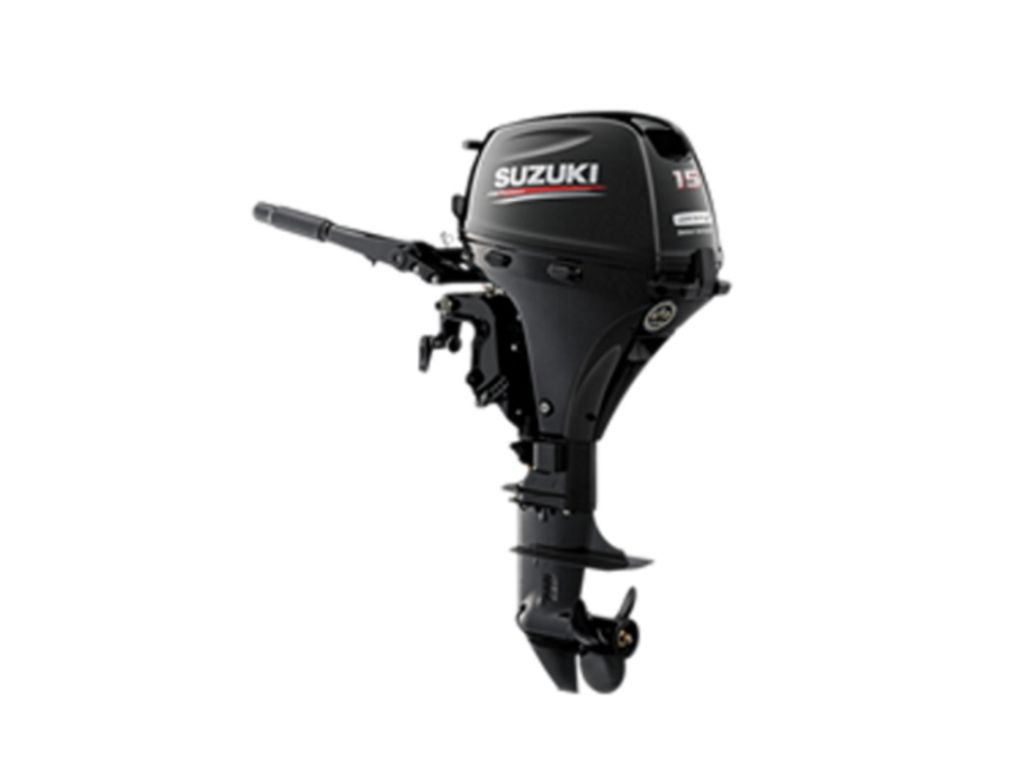

Suzuki Marine
DF15A EFI
S
Features may include:
- Battery-Less Electronic Fuel Injection
- Easy Start Recoil Starter – Electric Start Option
- Lean Burn Control
- Over-Rev. Limiter
- Tilt Option
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System
Engine
Engine Type
SOHC 4-Valve
Engine Power
Max Output: 15 HP
Displacement
Piston: 20.0″ (327 cc)
Rated Engine Speed
Operating Range: 5000 – 6000 RPM
Bore
2.38 in (60.4 mm)
Stroke
2.24 in (57 mm)
Gear Ratio (Primary)
2.08:1
Cylinder Liners
2
Ignition
System: Digital CDI
Steering
Tiller
Starter
Manual and Electric: 15″
Electric
Alternator
Manual 12V 6A / Electric 12V 12A
Fuel System
Fuel System
Delivery: Electronic Fuel Injection with Lean Burn
Dimensions
Transom Height
Recommended: 15″
Capacities
Oil capacity
Pan: 1.06 qts (1.0 lts)
Weights
Weight
Manual: 97 lbs | Electric: 105 lbs
Features
Features
Trim Position: 5 Tilt Pin Positions and 2 Shallow Water Drive Settings | Standard Propeller: 3 x 9.25 x 9 | Propeller Selection: 7 – 11
