300 CV MULTIPROCESS WELDER FULLY LOADED Wireless

The Dynasty

300 CV MULTIPROCESS WELDER

FULLY LOADED WIRELESS with CV and CPS welder offers multiprocessor capabilities and features like Auto-Line,

AC TIG

, pulse, and high-frequency arc starts. The Dynasty 300 weighs just 55 pounds making it the most versatile, portable machine in its class.

The primary purpose of the Dynasty 300 CV MULTIPROCESS WELDER FULLY LOADED WIRELESS with CV is so that the unit may be paired up with a Suitcase Feeder such as the ArcReach 8 or 12 and used for high-output wire feeding (MIG).

Processes

• AC/DC TIG

• Pulsed TIG

• Stick

• Air Carbon Arc

• MIG

Features

• Auto-Line (208-600V Hookup)

• Software Updates through USB Port

• Blue-Lightning High Frequency Arc Start

• Digital Meters

• Fan-On-Demand

• Cooler-On-Demand

• Wind Tunnel Technology

• Pro-Set Parameters

• Sleep Timer Conserves Power

• Cooler Power Supply (CPS) 120V Receptacle

Quick Specs

• Voltage: 208-600V | 1 or 3 Phase

• Amperage Range: 2-300A AC | 1-300A DC

• Duty Cycle (3-Phase): 60% @ 250A

• AC Material Thickness: 0.012-3/8″

• Weight: 55lbs

• Max Stick Electrode Size: 1/4″ 6010 | 7/32″ 7018 | 3/16″ 7024

• Generator Requirement: 12.5 KW

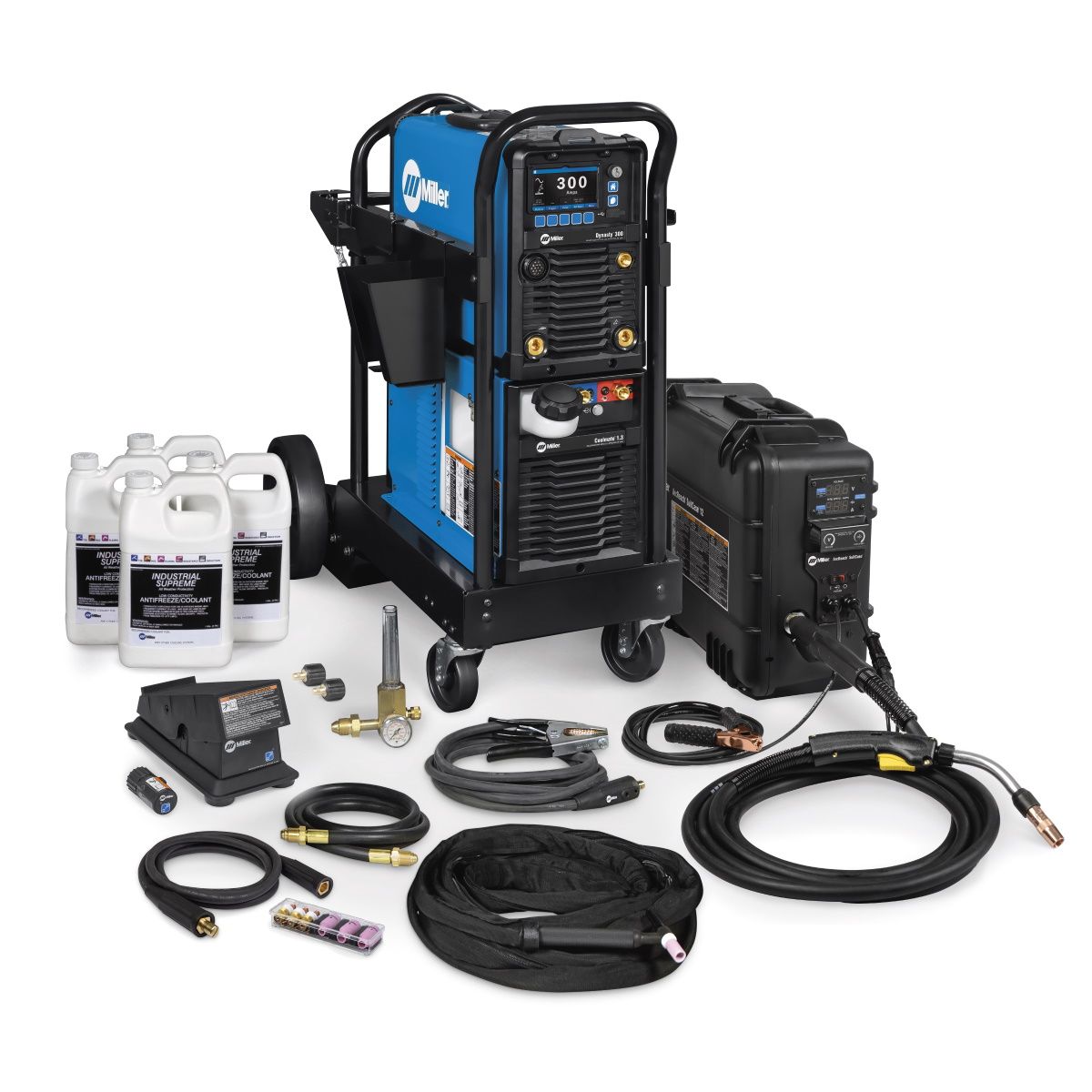

Includes

• Dynasty 300 Power Source

• Coolmate 1.3 Cooler

• Small Runner Cart

• ArcReach 12 Feeder w/Bernard Gun

• (2) 50mm Dinse Connectors

• 8 Foot Power Cord (No Plug)

• User Manual
