BUY LINCOLN CLASSIC 300 MP KUBOTA CC/CV WELDER GENERATOR (K4264-1) ONLINE

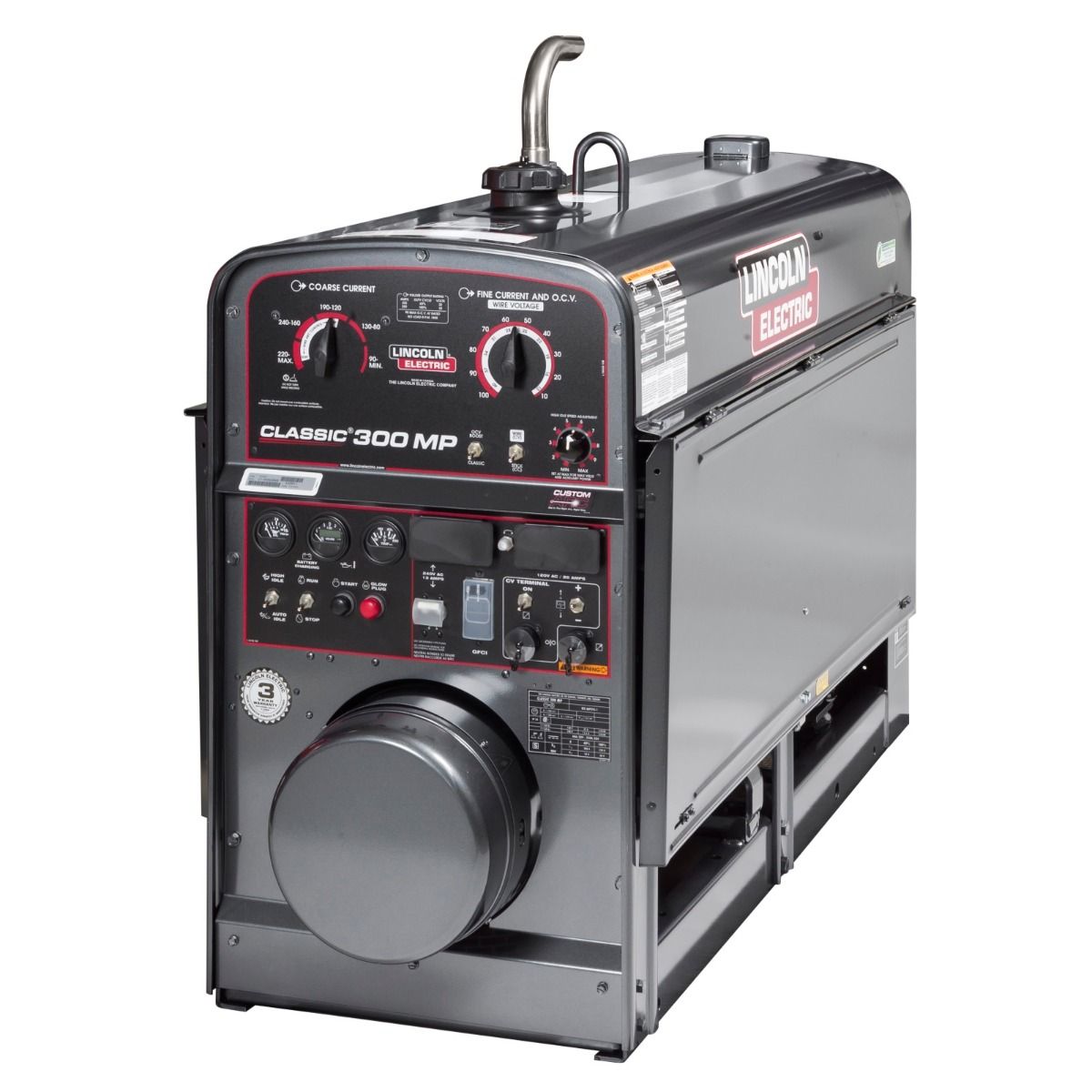

The Classic
300 MP KUBOTA CC/CV WELDER
GENERATOR (Multi Process) generator combines a rugged design with traditional pure DC generator technology for excellent welding performance in pipe, construction, and maintenance applications. This package comes with painted gray steel and a
24.7HP
T4 Kubota diesel engine that gives you up to 350 amps of smooth DC welding. The Classic 300 MP models offer a 5-step current control that when used in conjunction with a fine-tuning control allows for precise setting of amps, volts, and slope for a digging, penetrating arc for root beads or a soft, buttery arc for stacking iron on the fill and cap passes.
The classic 300 mp features a 16-gallon fuel tank which translates to a 64-hour runtime at low/no idle or 14.3 hours when welding constantly at 300 amps.
These machines are Made-to-Order from Lincoln. Please allow 4-6 weeks for shipping.
Applications:
• Pipeline
• Construction
• Maintenance & Repair
Features:
• Meets all EPA Tier 4 Requirements
• 3-Cylinder, water-cooled, 1800 RPM Kubota Diesel Engine
• Big fuel savings compared to previous engines
• Fuel gauge on control panel
• Adjust the arc for a snappy “digging” arc for root and hot passes on pipe with cellulosic electrode, or for a soft “buttery” arc for pipe welding with low hydrogen electrode
• Pipeline operators will enjoy welding with the arc produced from the rotating armature/field coil system manufactured for many years by Lincoln Electric
• All copper windings enhance arc stability for a really smooth, high performance arc
• 300 Amps output @ 60% duty-cycle, welds up to 7/32″ fleet weld 5P + cellulosic and Excalibur low hydrogen electrodes.
Quick Specs:
•
Kutbota D1503 EPA Tier 4 Engine
• Output Range: 40-350A DC Welding, 3000 Watts AC Power
• Rated Output: 250A DC/30V/100%, 300A DC/32V/60%
• 3 Cylinders
• 24.7 HP @ 1800 RPM
• Weight: 1,377 lbs
• Dims: 37″H X 24″W X 63″L (46″H to top of exhaust)
| Brand | Lincoln |
|---|---|
| SKU | ILIN20190014 |
| MPN | LINK4264-1 |
| Mfgs MPN | K4264-1 |
| UPC | 15082628554 |
| Prop65 | Yes |
| Process | Flux Cored (FCAW), MIG, Stick, TIG |
| Max Amperage Output | 350 Amps |
| Phase | Single Phase |
| Manufacturer’s Warranty | 3 Years |
| Polarity | DC |
| Duty Cycle | 100% |
| Duty Cycle | 100% @ 250A |
| Portability | 1377 lbs |
| Skill Level | Weekend Warrior, Career Welder |
| Discontinued Product | No |
