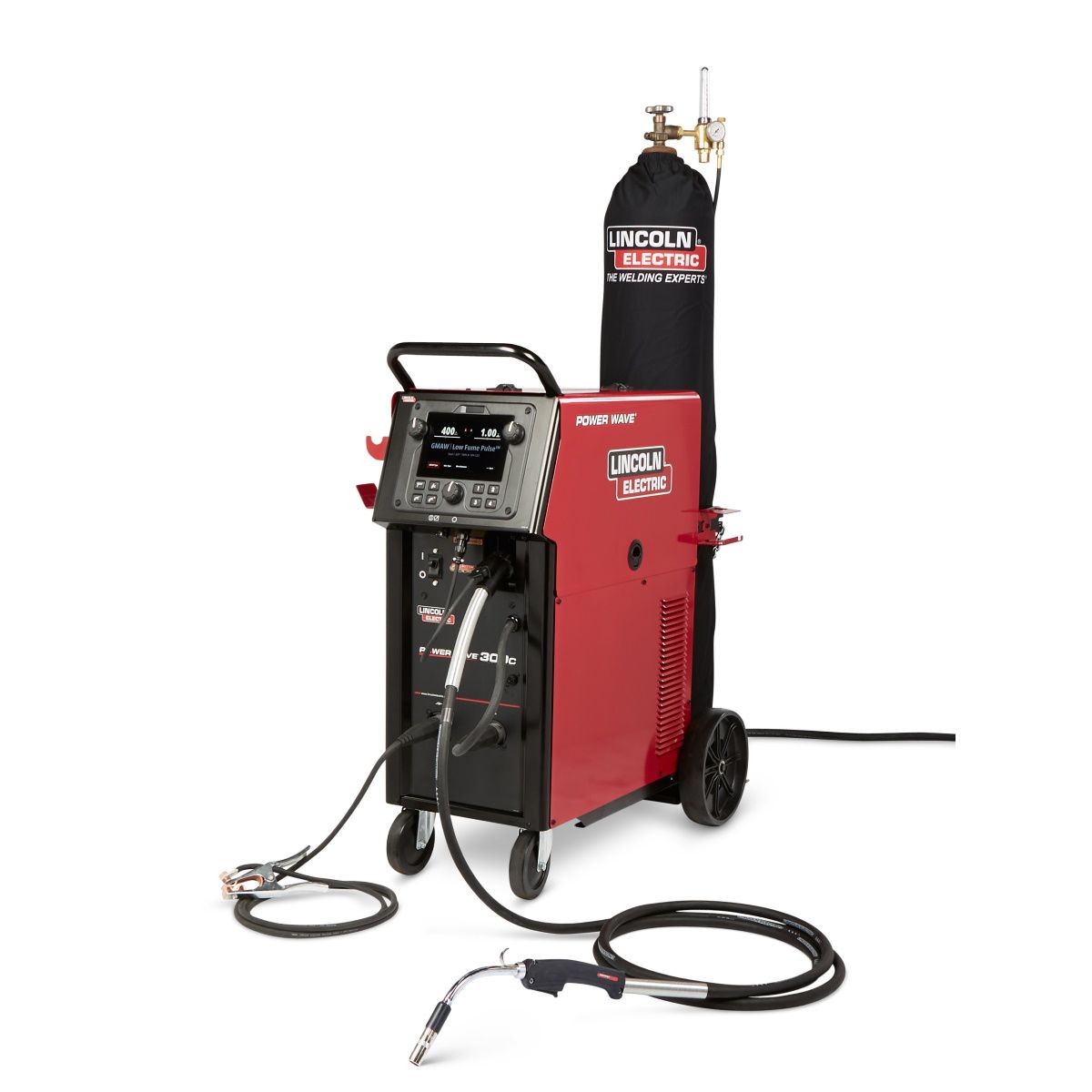

300C Standard Multi Process Welder

The Lincoln Power Wave

300C STANDARD MULTI PROCESS

WELDER delivers the ultimate

300 Amp

“do everything” welder. Packed with all the arc performance and technology you expect from a Power Wave system, this compact machine takes the industrial all-in-one class of welders to the next level. This is an ideal welder for aluminum (with Spoolgun), stainless, and nickel materials where arc performance is critical. This welder can be used on single or three-phase power and carries a 100 percent duty cycle at 300 amp output.

Processes

Stick, DC Tig

(No Aluminum)

, MIG, Flux-Cored

Features

Power Connect Technology

Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant throughout the entire input voltage range.

Integrated TIG torch and Spool Gun Solenoid

Makes for fast changeovers to TIG welding or spool gun operation.

Quick Specs

• Input Voltage: 3Ph – 50/60 HZ – 208-575V | 1Ph – 50/60 HZ – 208-230

• Output Range: 5-350 Amps

• Wire Feed Speed: 50-700 ipm

• Duty Cycle: 40% @ 350A | 100% @ 300A

• Weight: 193 lbs

• Dimensions: 40″H x 21″W x 40″L

Includes

• Power Source

• 15 Ft Magnum Pro Curve 300 Ready-Pak MIG Gun

• 10 Ft Work Lead and Clamp

• Harris Flowmeter/Regulator and Hose Kit

• .035-.045 V-Groove Drive Roll Kit

• 10 Ft Input Cord (No Plug)
