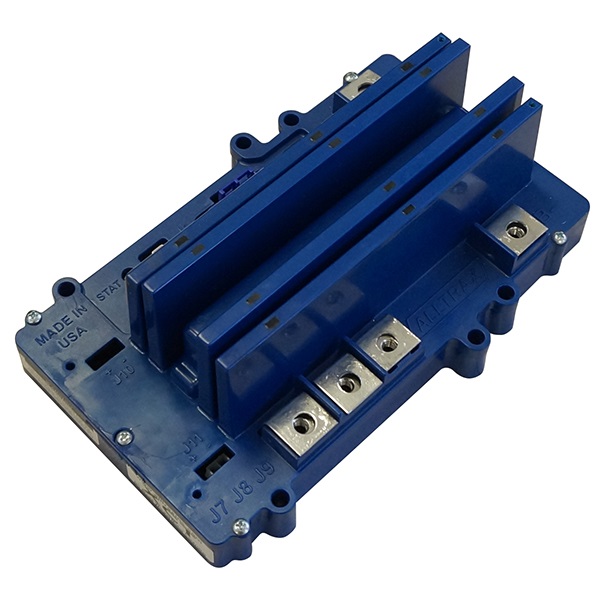

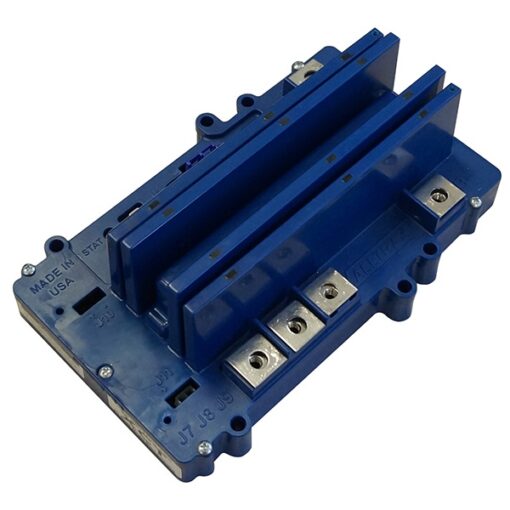

Club Car Golf Cart Controller Alltrax SR Series 300A For Sale

This 300 Amp Alltrax Club Car Golf Cart Controller is designed specifically to work with all 36v or 48v Club Car Series models 1996 or later. This is a direct OEM replacement for your Club Car Golf Cart Speed Controller.

Series Motor Applications ONLY!

Not for use in Regen Carts. See XCT Series for golf carts with regenerative braking characteristics. AllTrax can power your creation with multiple golf cart speed controller options for many applications and voltage requirements. Performance without compromise. Made In the USA.

Features and Benefits:

12 to 48 volt
300 amp
User personality switch input
Flexible USB programming
Integrated heat sink mounts on any suitable surface
Solenoid Control for Main DC Control
Standard 4-hole OR 2-hole mounting
Optional Universal-Mount Adapter for No Drill Install
Auto-throttle calibration for smooth operation
Absolute mode (Precision control for industrial applications)

Specifications:

Type: Series Motor Controller
Operating Frequency: 18kHz
Controller Voltage, KSI & Reverse:
SR48XXX 12-48V nom, 62V max
SR72XXX 12-72V nom, 90V max
Controller Operating Temp: -20°C to 75°C, shutdown @ 85°C
Environmental Operating Temp: -20°C to 50°C
Standby Current (Power up): <1W nom, <8W Fan on
Stand By Power : <20mA
Relay Drive Output Current: 5A peak, 1A Continuous. (Solenoid) – Upgrade Required –

See Options Now
Throttles Supported: 0-5k, 5k-0, E-Z-GO ITS, Club Cart 5k-0 3 (See Below)
Terminal Torque: Torque to 60-80 in.lb (5-7 ft/lb, 6.77-9.4Nm)
