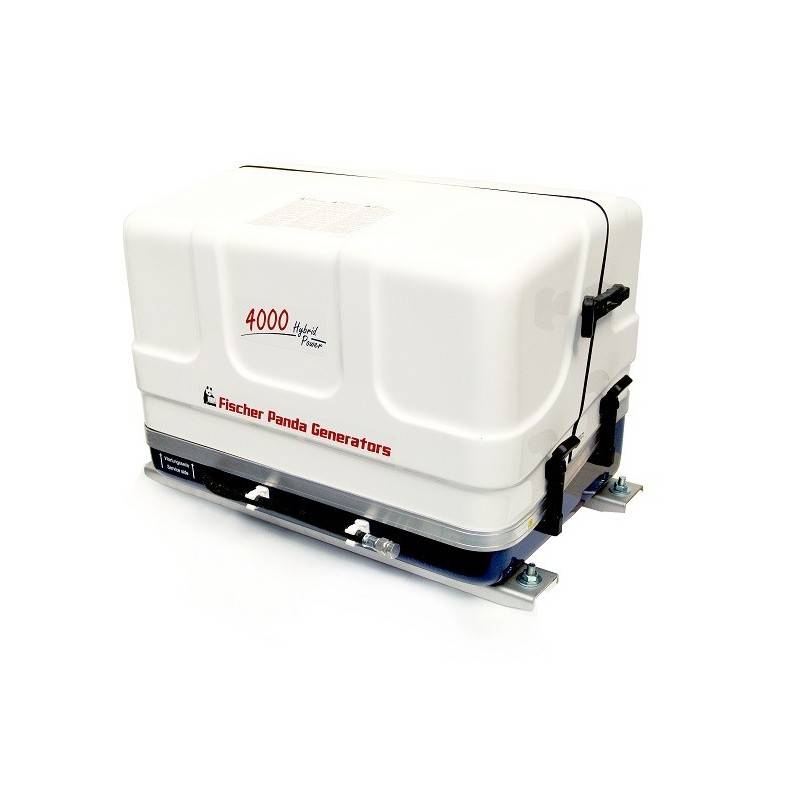

Fischer Panda AGT DC4000 12V Marine Generator Supersilenced 3.2 KW

Generator for boats Fischer Panda AGT-DC4000 12V single-phase 3.2 KW, also called marine generator, with variable speed motor from 2400 rpm to 3000 rpm. The Fischer Panda AGT-DC4000 12V marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda AGT-DC4000 12V marine generator is built with a Kubota diesel-powered engine. The Fischer Panda AGT-DC4000 12V marine generator alternator has 2 poles and H insulation class. With its compact size and low weight, the Fischer Panda AGT-DC4000 12V marine generator is also suitable for installation on small boats.

Hybrid AC energy – indirect AC

Battery charging generators produce direct current and generally function as part of a hybrid power supply system. Battery levels are monitored and charged automatically by the generator. An inverter supplies power to the on-board 230 V consumers. These systems are ideal for typically variable power requirements that do not require a generator to operate constantly during the day.Ideal for systems where the generator runs for short intervals to charge the power bank and support peak power periods.nIn this version, the charging voltage is controlled by an integrated AGT controller that regulates engine revs.nThe engine revs can therefore be variable to achieve the required performance. However, when installing this version, the batteries must be positioned close to the generator.* Designed for DC-AC power systems with battery plus invertern* The generator is required to operate intermittently onlyn* Optimum use of the generatorn* High degree of efficiencyn* Compact desig* Reduced fuel consumptio

Fischer Panda AGT-DC4000 12V Marine Generator Supersilenced 3.2 KW Specifications:

Phase : Single phasenMaximum power single phase (KW) : 4nContinuous power single phase (KW) : 3.2nMaximum power single phase (KVA) : 4nContinuous power single phase (KVA) : 3.2nFuel : DieselnFrequency (Hz : 50nVoltage (V) : 12nEngine : Kubota EA300nEngine rpm (rpm) : 2400-3000nSpeed governor : ElectronicnEngine capacity (cm³) : 309nNumber cylinders : 1nOil capacity (L) : 1.3nCooling : WaternPoles : 2nBore x stroke (mm) : 78 x 64nMotor insulation class : HnLength (mm) : 598nWidth (mm) : 398nHeight (mm) : 410nDry weight (Kg) : 90nSilenced : YesnSuper silenced : YesnProduct type : GeneratornVoltage regulator : InverternEngine manufacturer : Kubota
