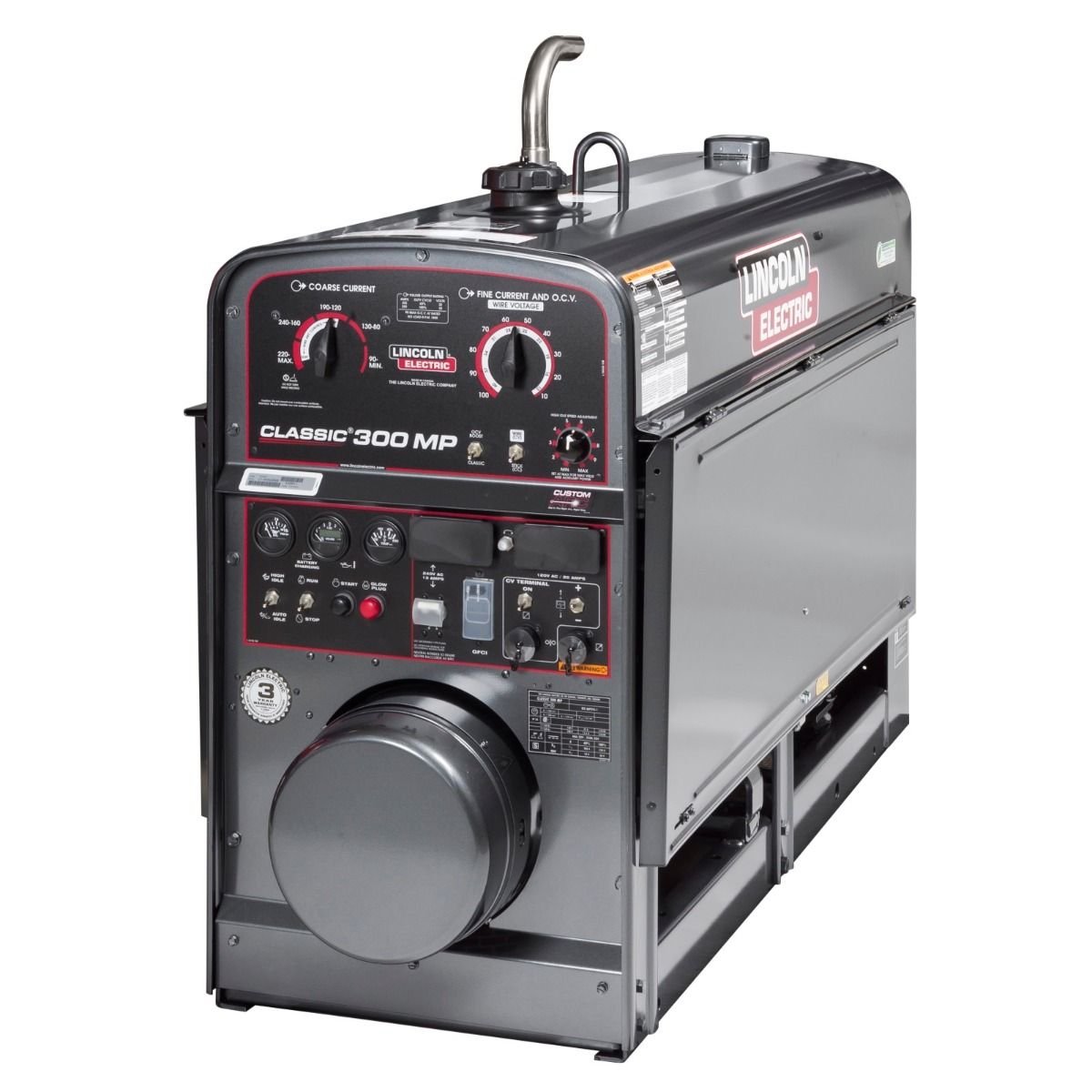

Lincoln Classic 300 MP Perkins CC/CV Welder Generator (K4263-1)

The Classic 300 MP (Multi Process) generator combines a rugged design with traditional pure DC generator technology for excellent welding performance in pipe, construction, and maintenance applications. This package comes with painted gray steel and a turbo-charged Perkins 24.7HP T4 diesel engine that gives you up to 350 amps of smooth DC welding. The Perkins model does allow a CustomArc control that provides up to 150 RPM of engine speed adjustment to fine tune the heat input at the arc. The Classic 300 MP models offer a 5 step current control that when used in conjunction with a fine tuning control allows for precise setting of amps, volts, and slope for a digging, penetrating arc for root beads or a soft, buttery arc for stacking iron on the fill and cap passes.

The classic 300 mp features a 16-gallon fuel tank which translates to a 64-hour runtime at low/no idle or 14.3 hours when welding constantly at 300 amps.

These machines are Made-to-Order from Lincoln. Please allow 4-6 weeks for shipping.

Applications:

• Pipeline

• Construction

• Maintenance & Repair

Features:

• Meets all EPA Tier 4 Requirements

• 3-Cylinder, water-cooled, 1800 RPM Turbo-Charged Perkins Diesel Engine

• Big fuel savings compared to previous engines

• Fuel gauge on control panel

• Adjust the arc for a snappy “digging” arc for root and hot passes on pipe with cellulosic electrode, or for a soft “buttery” arc for pipe welding with low hydrogen electrode

• Pipeline operators will enjoy welding with the arc produced from the rotating armature/field coil system manufactured for many years by Lincoln Electric

• All copper windings enhance arc stability for a really smooth, high performance arc

• 300 Amps output @ 60% duty-cycle, welds up to 7/32″ fleetweld 5P + cellulosic and Excalibur low hydrogen electrodes.

Quick Specs:

•

Perkins Engine

• Output Range: 40-350A DC Welding, 3000 Watts AC Power

• Rated Output: 250A DC/30V/100%, 300A DC/32V/60%

• 3 Cylinders

• 24.7 HP @ 1800 RPM

• Weight: 1,364 lbs

• Dims: 37″H X 24″W X 63″L (46″H to top of exhaust)
