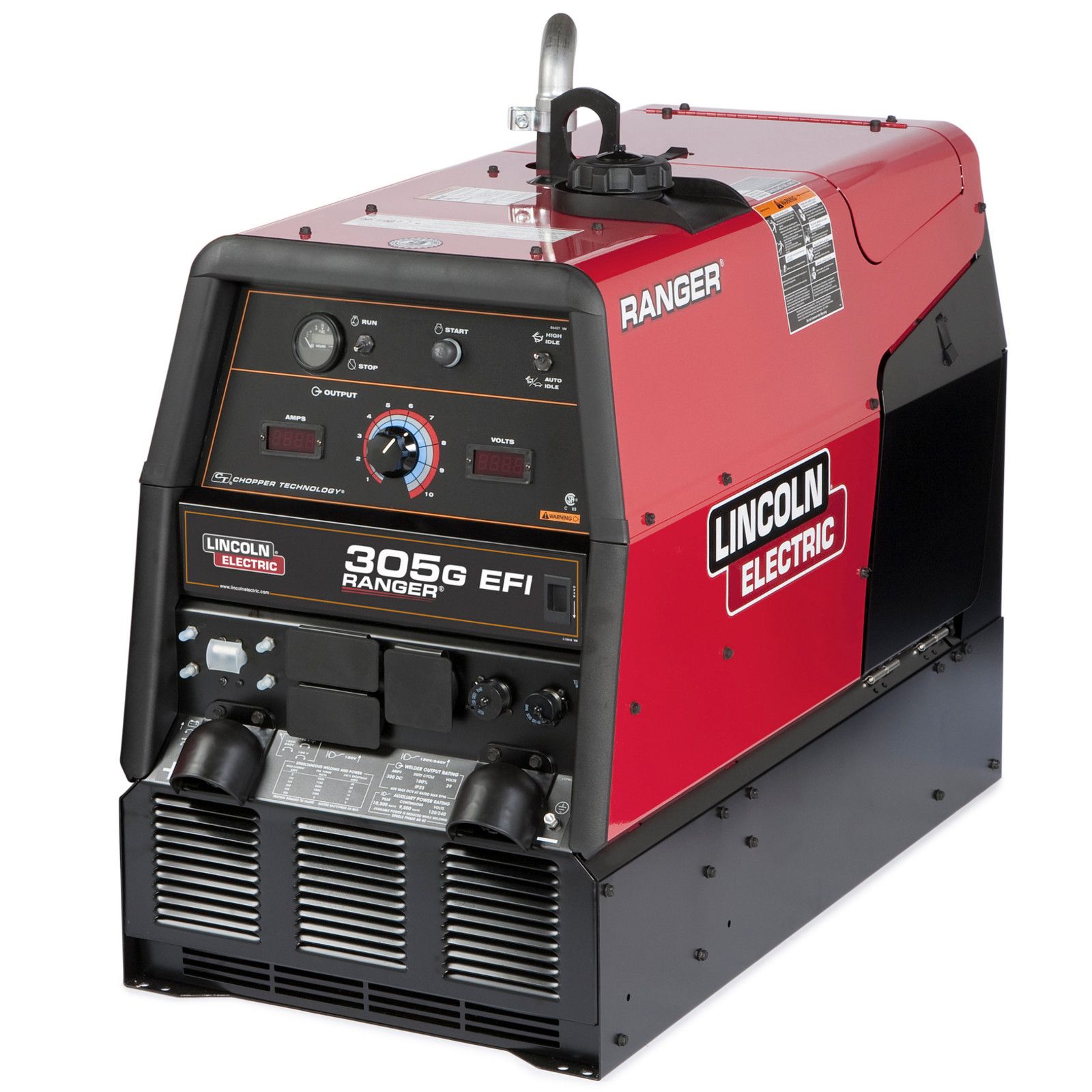

LINCOLN RANGER 305G WELDER GENERATOR W/ EFI (K3928-1)

A powerful multiprocess MIG, TIG, Stick, Flux-Cored and Gouging machine, the Lincoln Ranger 305G Welder Generator w/EFI is ready to take one anything you can throw at it. The EFI (Electronic Fuel Injection) is a great feature of this machine, making sure it starts in cold weather.

Kohler Gasoline Engine:


• 25 HP EFI (Electronic Fuel Injection) for easier starts in cold weather.

• Lower fuel use

• Electric fuel pump to avoid vapor lock at high altitude operation.

Multi-Process Welding


• Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.

• Only compact gasoline welder in North America rated at 29V for 300 amps of stick or CV welding.

• CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

Digital Weld Meters


• Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.

Superior Arc Performance


• Lincoln Chopper Technology provides easy starts, a smooth arc, low spatter and excellent bead appearance.

Peak Single-Phase AC Generator Power for Motor Starting


• 10,500 watts peak for motor starting

• 9,500 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Invertec inverter welder. Also use for lights, a grinder or other power tools.

• AC generator voltage is constant at 120V or 240V at any weld dial setting.

Skewed Rotor Design


• Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources. Lincoln Electric was the first in the welding industry with this feature.

Rugged Reliability


• Welding and AC Generator Outputs rated at 104°F (40°C).

Key Features:


• Kohler Gasoline Engine – 23 HP carburetor.

• Multi-Process Welding – Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.

• Digital Weld Meters – makes it easy to precisely pre-set your procedures and monitor actual welding output.

• Superior Arc Performance – Lincoln Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.

• Peak Single-Phase AC Generator Power for Motor Starting – 12,000 watts peak for motor starting.

• 9,500 watts continuous for high capacity needs.
