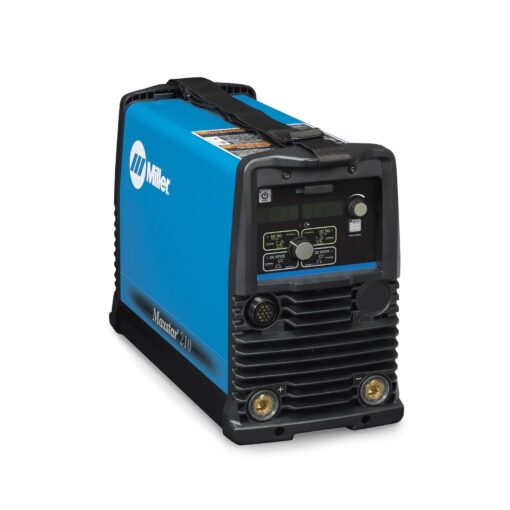

MAXSTAR 210 STR DC STICK/TIG WELDER

The Miller MAXSTAR

210 STR DC STICK/TIG WELDER

provides maximum flexibility by

automatically

connecting to any input power while maintaining the best DC Stick welding performance in its class. MAXSTAR 210 STR DC STICK/TIG WELDER.

This machine does NOT have high frequency nor can it weld aluminum

New Features


• Memory Card Port – Easily update software & expand product features

• Digital Meters

• Dual TIG Schedule

• Dual Stick Schedule

• Pro-Set – Eliminates the guesswork when setting weld parameters

• Standby / Power Switch / Sleep Time – A programmable feature will power down the machine if is sits idle for a specified time

Standard Features


• Auto-Line provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source.

• Low OCV Stick reduces open-circuit voltage to 9-14 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.

• Superior Stick arc performance on all input voltages. Even on the difficult to run electrodes like E6010.

• Portable in shop or at job site – at 32lb the Maxstar 200 STR is easily moved from location to location.

• Adaptive Hot Start for Stick arc starts automatically increases output amperage at start of weld should the start require it. Prevents electrode from sticking and creating an inclusion.

• Lift Arc start for TIG arc starts without the use of high frequency.

• Fan-On-Demand operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine.

• Wind Tunnel Technology provides internal air flow that protects electrical components and PC boards from dirt, dust, debris; greatly improving reliability.

• Line Voltage Compensation (LVC) keeps output of the power source constant regardless of fluctuation in input power ± 10%.

Quick Specs


• Processes: DC TIG, DC Stick

• Input Power: 120-480 Volts, 1 or 3 Phase, 50/60 HZ

• Rated Output (230 Volt, 1 Phase) – DC TIG = 210A, 60% | DC Stick = 210A, 30%

• Weight: 36 lbs

• Dimensions: 24″L x 13″W x 17″H

Comes complete with:


• 8 ft Power Cord (No Plug)

• (2) 50-mm Dinse Connectors
