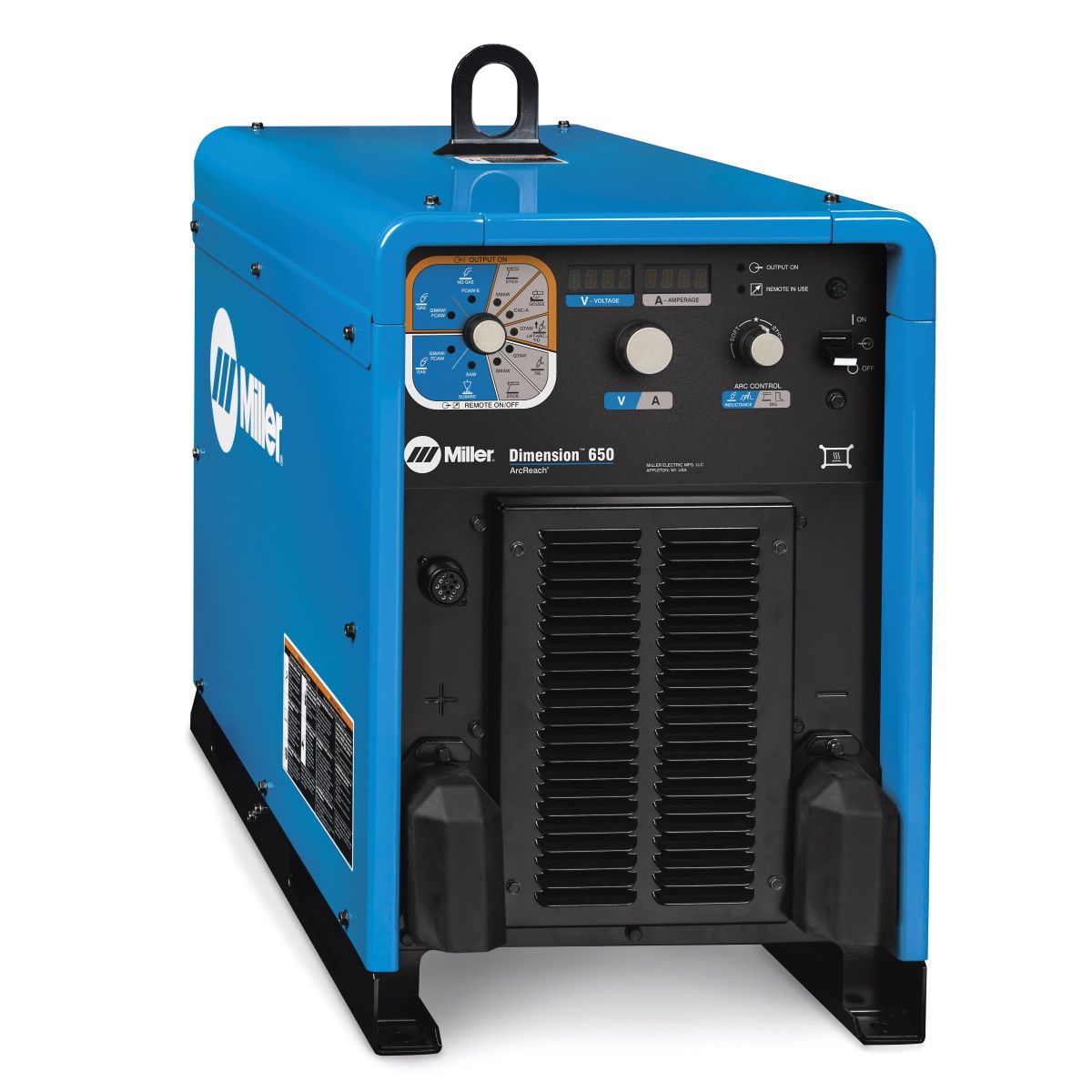

MILLER DIMENSION 650 MULTIPROCESS WELDER W/ARCREACH (380/460V) (907617001)

The Miller Dimension 650 offers an unbeatable combination of durability, output, efficiency, and capability in a smaller package. This unit boasts a 100 percent duty cycle at 650 amps, offering excellent stick, lift-arc TIG, and short-arc MIG capabilities.

The Dimension 650 requires 3-Phase Power.

Features


• All-Aluminum Construction – helps the machine resist corrosion for longer life

• Exclusive Protection – input indicator protects machine from “dirty” power

• Wind Tunnel Technology – protects electrical components from dirt, dust, debris

• Fan-On-Demand – operates only when needed, reducing noise and power consumption

• Smaller and Lighter – 3.5 times lighter than the Dimension 652 and 40 percent smaller

• Power Efficient – draws only 43 amps using 460V power (32 percent fewer amps than previous model)

Advantages


• High-Quality Performance – significantly improved quality of arc in all processes

• Gouging Mode – provides 800 amps of usable power, 650 amps at 100 percent duty cycle

• Three Wire Modes – solid wire, flux-cored, sub-arc

• Arc Control – easier fine tuning for out-of-position applications

ArcReach Advantages (Remote Control of the Power Source without a Cord)


• Increased Uptime – no more trips back to the power source to make parameter changes

• Improved Jobsite Safety – reduced chances or slip, trip, or fall injuries

• Auto-Process Select – sets power source to correct weld process based on polarity from weld accessory

• ArcReach Heater – compatible with Miller’s ArcReach Heater system for preheat/bakeout applications
