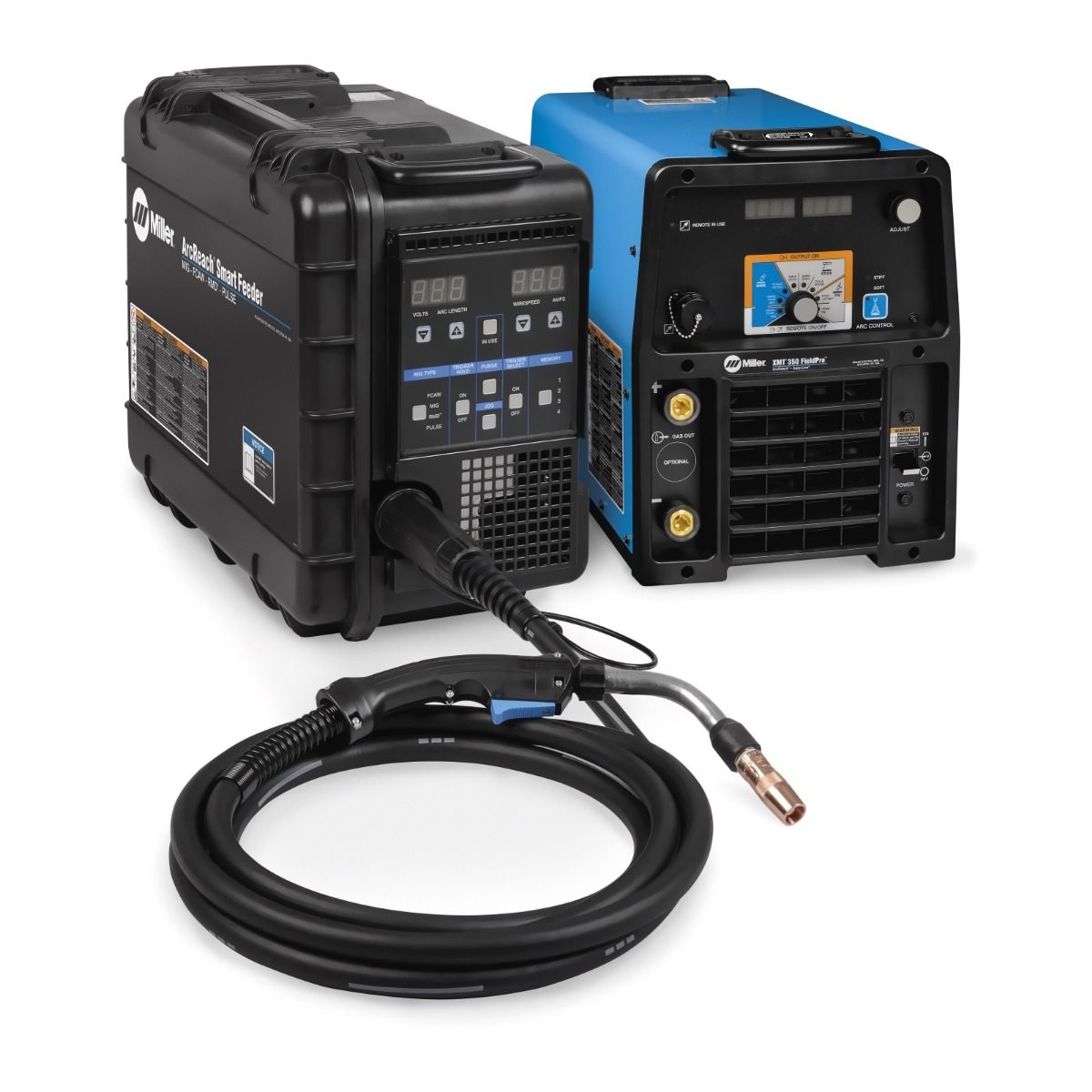

MILLER XMT 350 FIELDPRO ARCREACH W/SMART FEEDER PKG (951738)

The XMT 350 FieldPro multi-process welders offer portability, auto-line technology, and excellent arc performance. These welders feature Miller’s ArcReach technology which allows full control at the feeder rather than making a trip back to the power source to change output settings.

The ArcReach smart feeder delivers excellent RMD (regulated metal deposition) and pulsed mig welding up to 200 feet away from the power source. The RMD and pulsed MIG processes also help reduce weld failures and eliminate backing gas on some stainless and chrome-moly applications. All controls are automatically shifted to the ArcReach smart feeder once you connect the lead from the power source. RMD and pulsed MIG welding permits procedures with one wire and one gas to eliminate process switch-over time.

This particular model XMT comes equipped with Tweco Style Connectors.

XMT Features


• Auto-Line voltage hookup (208-575V)

• 1 or 3-Phase Capable

• Adaptive Hot Start

• Infinite Arc Control

• Lift-Arc

• Fan-on-Demand

• Lightweight, Aerospace-Grade Aluminum Case

• Large, Dual Digital Meters

• Process Selector Switch

ArcReach Benefits


• Cable Length Compensation (CLC)

• No Expensive Control Cords

• Improved Jobsite Safety

• Maximize Fleet Compatibility with ArcReach Power Sources

• More Operator Control

The

Auto Remote Sense

enables the unit to automatically use remote control if connected to remote control receptacle.

Quick Specs


• Voltage Range: 10-38V

• Amperage Range: 5-425A

• Duty Cycle: 60% @ 350A 3-Phase | 60% @ 300A 1-Phase

• Weight: 93 lbs

• Dims: 17″ H x 12.5″ W x 24″ D

More Information

Brand	Miller
SKU	IMIL20180076
MPN	MIL951738
Mfgs MPN	951738
UPC	715959657853
Prop65	Yes
Material	Mild Steel, Stainless Steel
Process	Flux Cored (FCAW), MIG, Stick, TIG
Max Amperage Output	425 Amps
Usage	Heavy Industrial, Industrial
Phase	Both
Manufacturer’s Warranty	3 Years
Polarity	DC
Duty Cycle	60%
Duty Cycle	60% @ 350A 3-Ph | 60% @ 300A 1-Ph
Portability	XMT – 93 lbs | Feeder – 55 lbs
Input Voltage	208, 220, 230, 240, 460, 575
Discontinued Product	No
