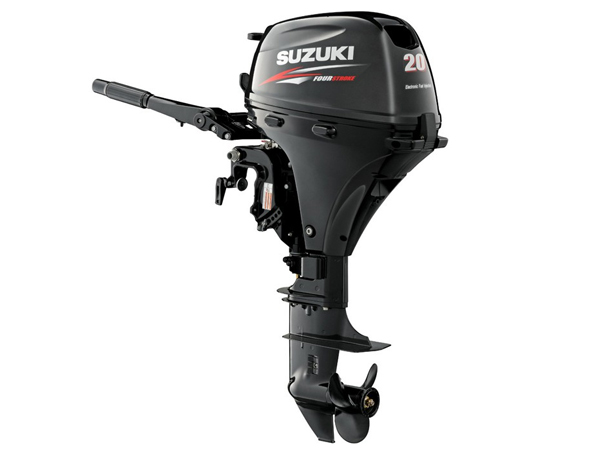

Suzuki 20 HP DF20AS2 Outboard Motor
Suzuki’s all new fuel efficient 20hp outboard motor model: DF20AS2 four-stroke outboard with the manual rope start and 15 inch shaft is an affordable choice of power for medium to larger sized jon boats, skiffs, and inflatable boats.. As the lightest outboard in its class and one of the quietest 4-strokes ever built, the Suzuki 20hp outboard motor is a great example of Suzuki’s excellence in engineering. Check out the long list of standard features below which make the 20hp Suzuki outboard engine an exceptional value.
Suzuki 20 HP DF20AS2 Outboard Motor
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest Outboard in 20hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Decompression Release for Easy Starts
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
-
Up to 17% more fuel efficient over
some competitor’s 4-strokes - Suzuki 3-Year Warranty
Suzuki 20 HP DF20AS2 Outboard Motor
|
Model |
DF20AS2 |
|
Model Year |
No |
|
SKU |
DF20AS2-17 |
|
Weight |
97.0000 |
|
Manufacturer |
Suzuki |
|
Country of Manufacture |
Thailand |
|
Horsepower |
20hp |
|
Shaft Length |
15″ (Short) |
|
Steering |
Tiller |
|
Starting |
Manual |
|
Trim & Tilt |
Manual |
|
Fuel Delivery |
EFI |
|
Fuel Tank |
External |
|
Cylinder(s) |
2 |
|
Displacement |
327 cc (20.0 cubic inches) |
|
Bore and Stroke |
60.4 x 57 mm (2.38 x 2.24 inches) |
|
Full Throttle RPM Range |
5300-6300 RPM |
|
Ignition System |
Digital CDI |
|
Induction Scavenging |
SOHC |
|
Valves per Cylinder |
2 |
|
Fuel Type |
Unleaded Gasoline (87 octane) |
|
Fuel Tank / Fuel Line |
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
|
Oil Type |
SAE 10W-30 or SAE 10W-40 |
|
Oil Capacity |
33.8 fl oz. (1000 mL) |
|
Lubrication |
Wet Sump; Trochoid Type Cam-Driven Oil Pump |
|
Alternator |
12V 80W 6A |
|
Cooling System |
Water-Cooled |
|
Saltwater Rated |
YES |
|
Gear Ratio |
2.08:1 |
|
Gear Shift |
Forward-Neutral-Reverse (front-mounted lever) |
|
Propeller |
3-Blade Aluminum 9.25″ Dia x 10″ Pitch |
|
Internal Battery |
No |
Suzuki 20 HP DF20AS2 Outboard Motor
What’s in the box?
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
