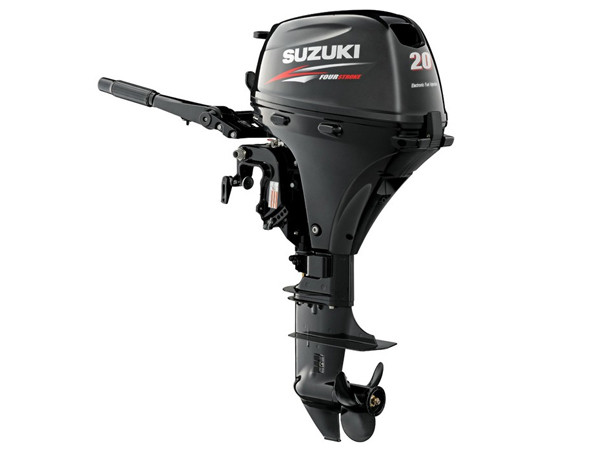

Suzuki 20 HP DF20ATHL2 Outboard Motor
The 20 HP Suzuki outboard model # 20 HP DF20ATHL2 comes with every feature you could want. Equipped with a 20 inch shaft this outboard has electric push button start and with tiller steering and throttle control. Perfect for large or heavy jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. As the lightest outboard in its class and one of the quietest 4-strokes ever built, the Suzuki 20hp outboard engine is a great example of Suzuki’s excellence in engineering.
Suzuki 20 HP DF20ATHL2 Outboard Motor
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest Outboard in 20hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
-
Up to 17% more fuel efficient over
some competitor’s 4-strokes - Suzuki 3-Year Warranty
Suzuki 20 HP DF20ATHL2 Outboard Motor
|
Model |
DF20ATHL2 |
|
Model Year |
No |
|
SKU |
DF20ATHL2-17 |
|
Weight |
123.0000 |
|
Manufacturer |
Suzuki |
|
Country of Manufacture |
Thailand |
|
Horsepower |
20hp |
|
Shaft Length |
20″ (Long) |
|
Steering |
Tiller |
|
Starting |
Electric |
|
Trim & Tilt |
Power Tilt |
|
Fuel Delivery |
EFI |
|
Fuel Tank |
External |
|
Cylinder(s) |
2 |
|
Displacement |
327 cc (20.0 cubic inches) |
|
Bore and Stroke |
60.4 x 57 mm (2.38 x 2.24 inches) |
|
Full Throttle RPM Range |
5000-6000 RPM |
|
Ignition System |
Digital CDI |
|
Induction Scavenging |
SOHC |
|
Valves per Cylinder |
2 |
|
Fuel Type |
Unleaded Gasoline (87 octane) |
|
Fuel Tank / Fuel Line |
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
|
Oil Type |
SAE 10W-30 or SAE 10W-40 |
|
Oil Capacity |
33.8 fl oz. (1000 mL) |
|
Lubrication |
Wet Sump; Trochoid Type Cam-Driven Oil Pump |
|
Alternator |
12V 145W 10A |
|
Cooling System |
Water-Cooled |
|
Saltwater Rated |
YES |
|
Gear Ratio |
2.08:1 |
|
Gear Shift |
Forward-Neutral-Reverse (front-mounted lever) |
|
Propeller |
3-Blade Aluminum 10.25″ Dia x 9.0″ Pitch |
|
Internal Battery |
No |
Suzuki 20 HP DF20ATHL2 Outboard Motor
What’s in the box?
- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
