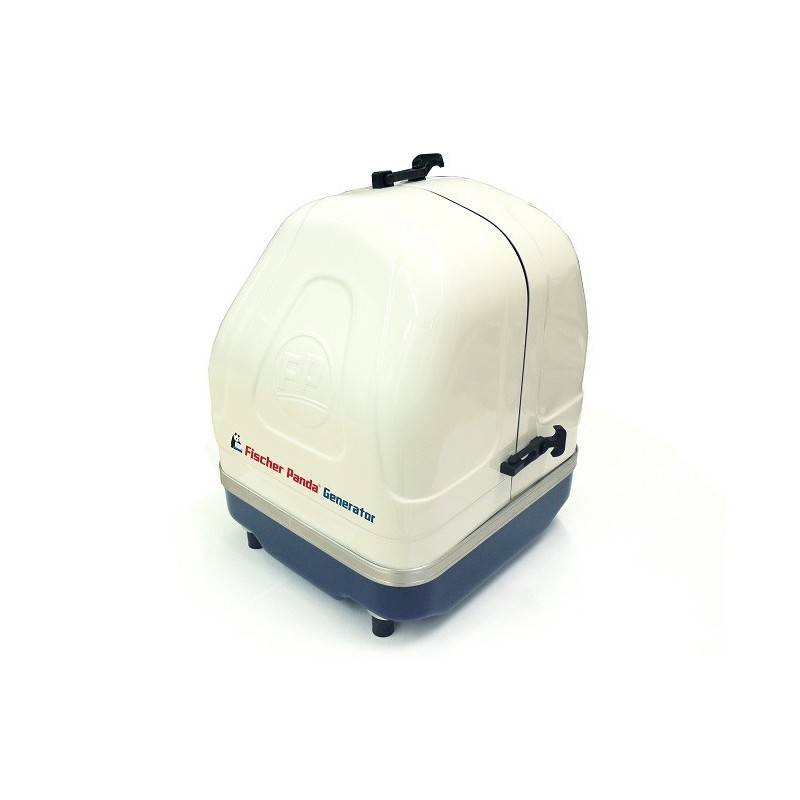

Fischer Panda 5000i Neo 60 Hz Marine Generator Supersilenced 5 KVA

Fischer Panda 5000i Neo 60 Hz Marine Generator Supersilenced 5 KVA

Generator for boats Fischer Panda 5000i 60 Hz, also called marine generator, designed to be compact, quiet and powerful with up to 30% weight and space savings! The Fischer Panda 5000i 60 Hz marine generator is ideal for yacht owners who require low noise and vibration levels. The Fischer Panda 5000i 60 Hz marine generator stands out for its modern, iovative and environmentally friendly inverter technology.The speed of the diesel engine is regulated according to the user’s different power requirements, while the output voltage from the inverter remains constant at all times. The variable speed control significantly reduces exhaust emissions and fuel consumption compared to a conventional fixed speed generator. The maximum engine speed of the Fischer Panda 5000i 60 Hz marine generator is 2800 rpm. The electrical load is supplied with a constant output voltage of 230 V / 50 Hz or 120 V / 60 Hz via an inverter.* Small size and low weight – compact installatio* Highly efficient – maximum energyn* Variable speed depending on loadn* 230 V AC output – reliable power supplyn* Pure sine wave is ideal for sensitive electronicsn* High starting capacity for air conditioners / compressorsn* Easy to install – no forced air circulation is required in the machine roomn* Environmentally friendly – low fuel consumptio* Optional interface CAN SAE J1939The 5000i 60 Hz marine generator is equipped with the renowned Fischer Panda sound insulation and water cooling.The new 5000i 60 Hz marine generator set takes full advantage of modern diesel engines designed to run at lower speeds and meet current emission standards.

High performance

The high starting performance for inductive loads such as air conditioning and underwater compressors and the clean sine waveform with its precise voltage and frequency regulation ensures a stable and efficient power supply for sensitive electronic devices.n* High starting capacity for air conditioners/compressors, which means there is no need to select large generators for starting currents.n* Highly efficient – maximum energyn* Pure sinusoidal wave ideal for sensitive electronicsn* Reliable power supply (230V AC output)

Compact design

The low weight and compact dimensions of the 5000i 60 Hz marine generator set allow the generator to be installed in very tight spaces.n* Low weightn* Compact desig* It requires only a minimum of space.

Digital display

The new iControl2 from Fischer Panda is capable of recording and reading more data.nAutomatic start function that allows the generator to start via an external electrical impulse. For example: a battery monitoring module could measure the battery level and give a signal to automatically start the Fischer Panda i-generator if it is below a preset value.

Fischer Panda 5000i Neo 60 Hz Marine Generator Supersilenced 5 KVA Specifications:

Phase : Single phasenMaximum power single phase (KW) : 4nContinuous power single phase (KW) : 3.6nMaximum power single phase (KVA) : 5nContinuous power single phase (KVA) : 4.2nFuel : DieselnFrequency (Hz) : 60nVoltage (V) : 120nEngine rpm (rpm) : 2500 – 3250nSpeed governor : ElectronicnEngine capacity (cm³) : 309nNumber cylinders : 1nOil capacity (L) : 2.1nCooling : WaternPoles : 2nBore x stroke (mm) : 78 x 64nMotor insulation class : HnLength (mm) : 426nWidth (mm) : 456nHeight (mm) : 510nDry weight (Kg) : 67nSilenced : YesnSuper silenced : YesnVoltage regulator : InverternEngine manufacturer : Fischer Panda
